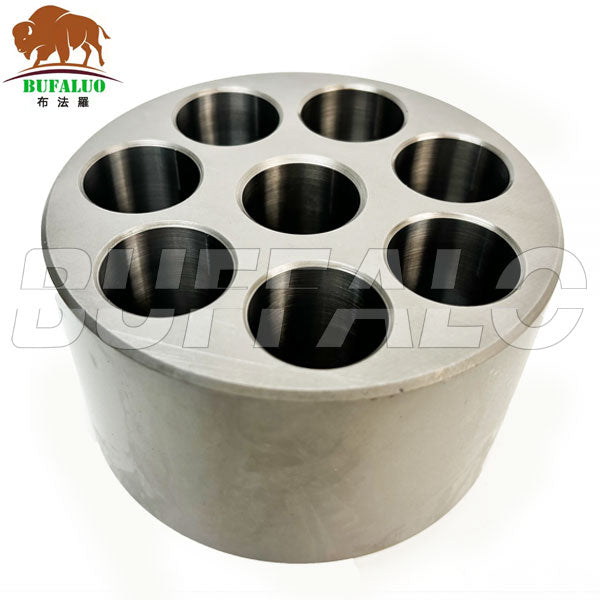

9T3370/9T-3370 BARREL-CYLINDER
1090, 1190, 1190T, 1290T, 1390, 215B, 225, 2290, 231D, 2390, 2391, 2491, 2590, 322B L, 322C, 322C FM, 324D FM, 324D FM LL, 325B L, 325C FM, 325D FM, 325D FM LL, 330B L, 330C FM, 330C L, 330D FM, 330D
191-0883: ROTATING GP-MOTOR
|
Pos.
|
Part No
|
Qty
|
Parts name
|
|
|---|---|---|---|---|
|
1.
|
[1]
|
BARREL-CYLINDER
|
|
|
|
2.
|
[1]
|
PLATE-CONTROL
|
|
|
|
3.
|
[1]
|
PIN-CENTER
|
|
|
|
4.
|
[7]
|
PISTON AS
|
|
|
|
|
[2]
|
RING
|
|
|
|
5.
|
124-9932 B
|
[1]
|
SHIM (3.50MM THK)
|
|
|
6.
|
124-9933 B
|
[1]
|
SHIM (3.60MM THK)
|
|
|
7.
|
124-9934 B
|
[1]
|
SHIM (3.70MM THK)
|
|
|
8.
|
124-9935 B
|
[1]
|
SHIM (3.80MM THK)
|
|
|
9.
|
124-9936 B
|
[1]
|
SHIM (3.90MM THK)
|
|
|
10.
|
124-9937 B
|
[1]
|
SHIM (4.00MM THK)
|
|
|
11.
|
[1]
|
SPRING
|
|
|
|
12.
|
[1]
|
PLATE-RETAINING
|
|
|
|
13.
|
[14]
|
SCREW (TORX)
|
|
|
|
|
B
|
USE AS REQUIRED
|
||
